Detachable Gooseneck Lowbed Trailers – Usage Areas & Transported Equipment

A complete guide to detachable gooseneck lowbed trailers, their main usage areas and the types of heavy equipment commonly transported using this trailer type.

📅 Published on 2026-07-18 | ✍️ Semi Trailer News Technical Desk

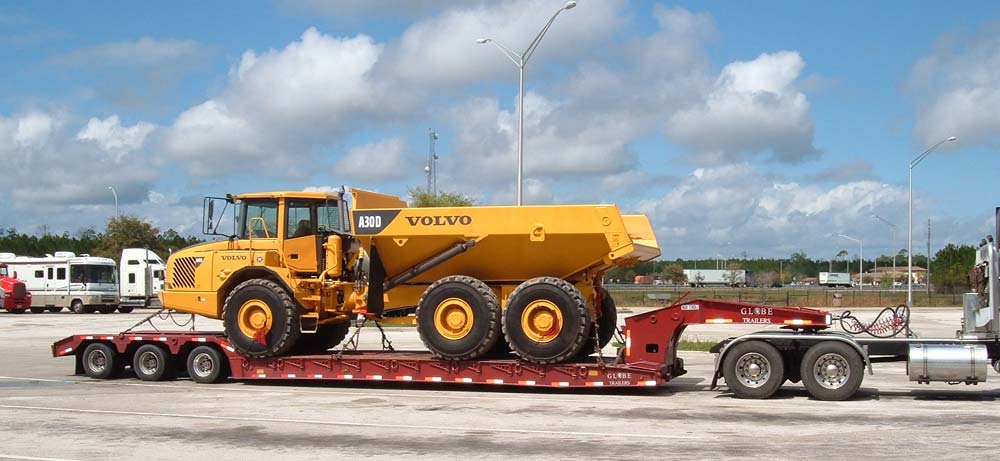

Image: Detachable gooseneck lowbed trailer used for heavy machinery transport

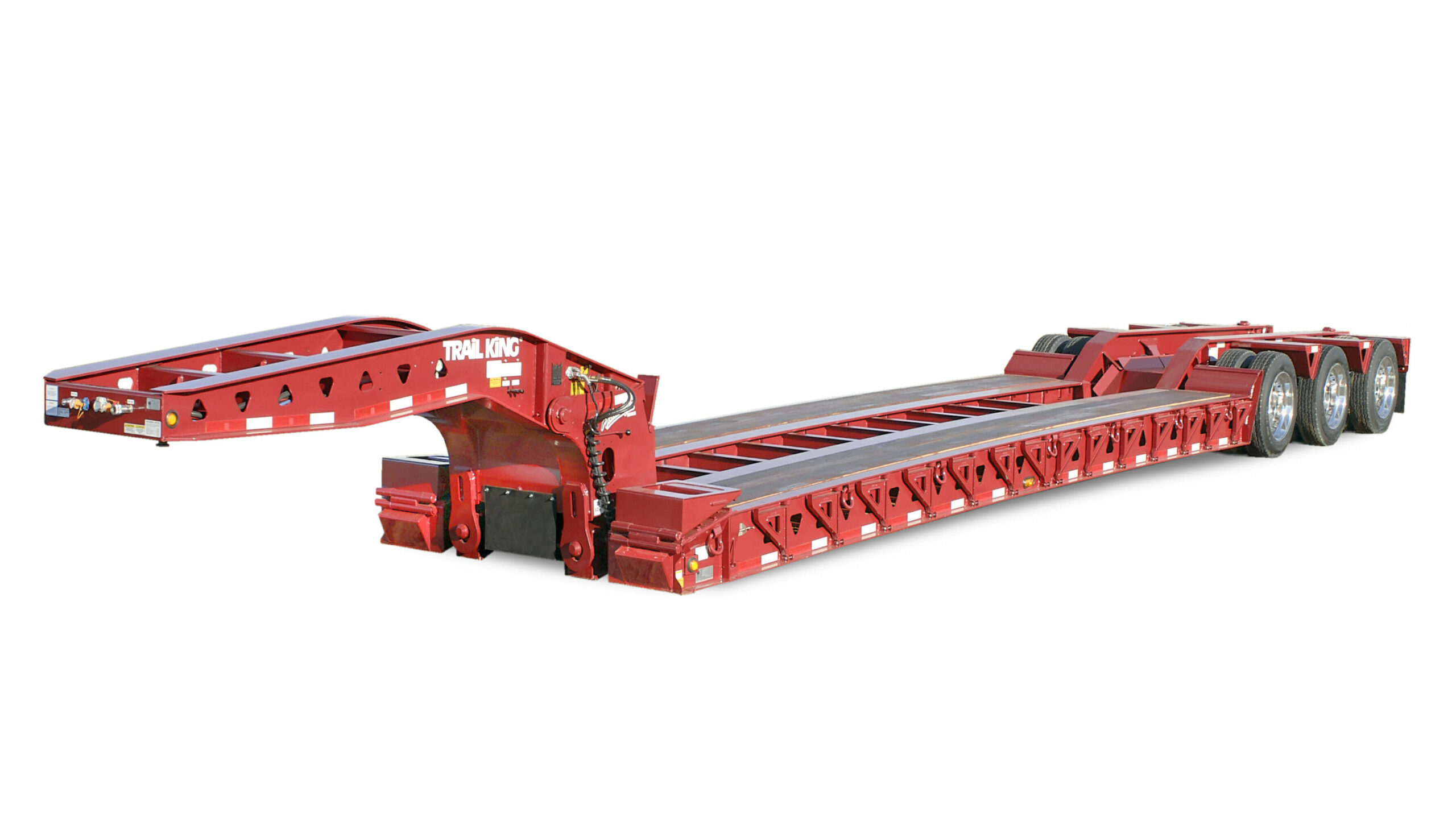

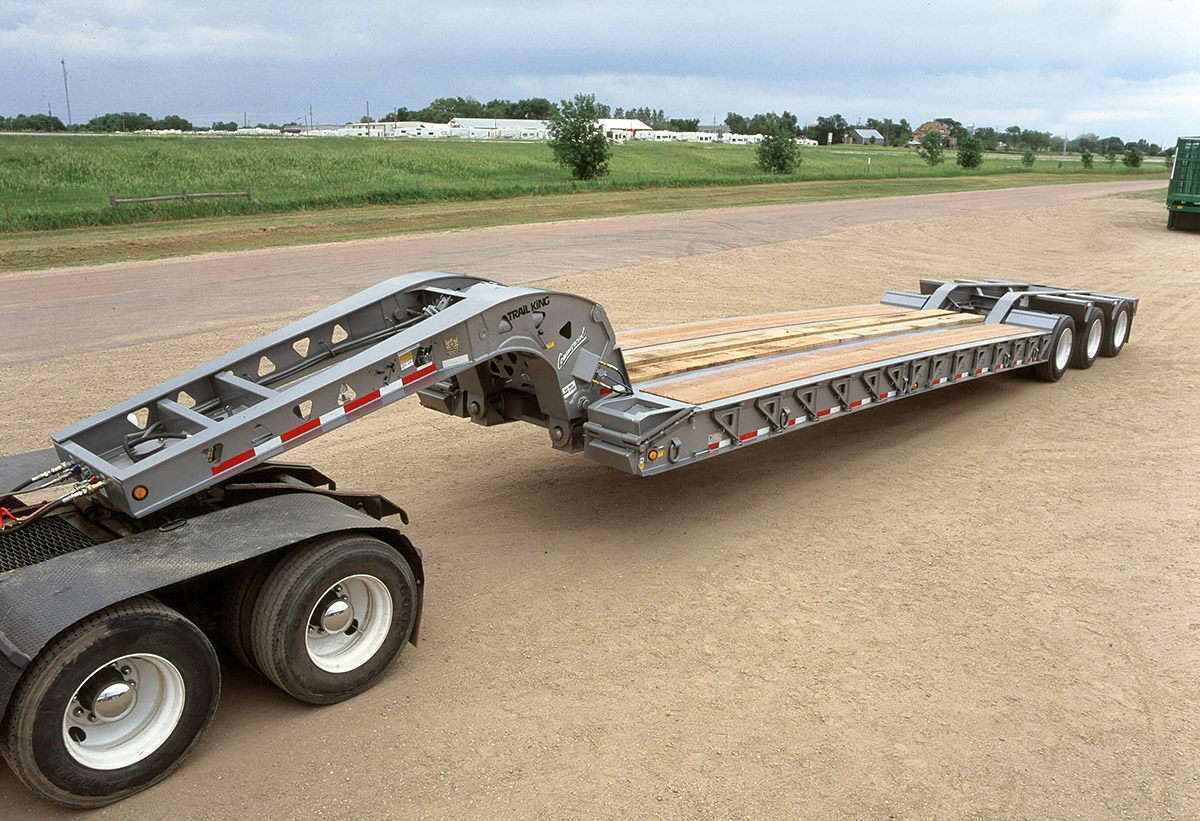

What Is a Detachable Gooseneck Lowbed Trailer?

A detachable gooseneck (DGN) lowbed trailer is a specialized heavy-haul transport solution engineered for moving oversized and overweight machinery with maximum stability and operational efficiency.

Unlike fixed-gooseneck lowbeds, the detachable version allows the front neck section to be hydraulically or mechanically disconnected. Once detached, the trailer deck lowers to ground level — creating a natural ramp that enables self-propelled equipment to drive directly onto the platform.

• Ground-level loading eliminates crane dependency
• Low deck height improves center-of-gravity stability
• Reduced loading time increases operational efficiency
• Safer loading for tracked machinery

For contractors and heavy transport operators, this flexibility translates directly into lower handling costs and improved project timelines.

Main Usage Areas

Detachable gooseneck lowbeds are widely used in industries where heavy, tall or wide equipment must be transported under strict dimensional and axle load regulations.

• Construction & Infrastructure: Excavators, concrete plants, piling rigs
• Mining & Quarry: Drilling machines, haul trucks, crushing units
• Energy Sector: Transformers, generators, wind turbine nacelles
• Industrial Relocation: Factory modules and heavy production lines
• Heavy Equipment Rental: Regional transport of large machinery

In many countries, detachable lowbeds are preferred for projects requiring frequent loading and unloading across multiple sites.

---

Types of Equipment Transported

These trailers are engineered to handle machinery that exceeds standard flatbed height and weight limits.

• Excavators, bulldozers, wheel loaders
• Mobile cranes and crawler cranes
• Pipelayers and directional drilling rigs
• Road construction equipment (graders, asphalt pavers, compactors)
• Large generators, turbine components and industrial modules

Because the deck height is typically between 850–1000 mm, overall transport height remains within legal limits even for tall machines.

---

Engineering Advantages

• Lower Center of Gravity: Improves roll stability during cornering
• Hydraulic Detachment System: Controlled neck separation for safe loading
• High-Tensile Steel Frame: S355, S690 or S700MC options for strength-to-weight optimization
• Multiple Axle Configurations: 2–9 axles depending on payload requirement
• Extendable Deck Options: For oversized cargo length adjustment

Modern detachable gooseneck trailers are often equipped with air suspension and EBS integration to ensure balanced braking under heavy loads.

---

Mechanical vs Hydraulic Gooseneck

Feature	Mechanical DGN	Hydraulic DGN
Operation Speed	Slower	Faster
Complexity	Lower	Higher
Maintenance	Minimal	Requires hydraulic system checks
Cost	Lower initial cost	Higher investment

Hydraulic systems provide greater convenience but require disciplined maintenance of pumps, hoses and seals.

---

Axle Load Distribution Importance

Proper axle load distribution is critical for compliance with road regulations and structural durability. Uneven loading may:

• Overstress suspension components
• Increase tyre wear
• Trigger EBS fault warnings
• Reduce braking efficiency

Axle Load Calculator

Note: This simplified estimator assumes even load distribution. Real-world calculations must consider deck position, load center of gravity and axle spacing.

---

Operational Best Practices

• Always detach on level ground
• Inspect locking pins before coupling
• Verify hydraulic pressure before lifting neck
• Secure machinery using certified lashing chains
• Recheck axle load compliance after positioning cargo

---

Conclusion

Detachable gooseneck lowbed trailers combine structural strength with operational flexibility. Their ground-level loading capability, low deck height and high payload capacity make them indispensable in heavy transport logistics.

When correctly specified with proper axle configuration, suspension type and steel grade, they provide a safe, stable and regulation-compliant solution for transporting high-value machinery across demanding terrain.

For heavy haul operations, adaptability is not optional — it is engineered into the detachable gooseneck system.

---
