Air Suspension Height Control Failures – Engineering Causes & Fixes

Trailer air suspension height errors cause tyre wear, poor stability, EBS misalignment and dangerous ground clearance issues. Here are the engineering causes and real-world fixes fleets can apply.

📅 Published on 2025-12-17 | ✍️ Semi Trailer News Technical Desk

Image: Trailer air suspension height control system inspection

Air suspension is one of the most important systems on modern trailers. When height control fails, the entire vehicle becomes unstable: poor ride height, wrong kingpin load, incorrect braking balance, tyre scrub and dangerous ground clearance problems.

Below are the engineering reasons behind air suspension height errors — and the real fixes fleets can apply.

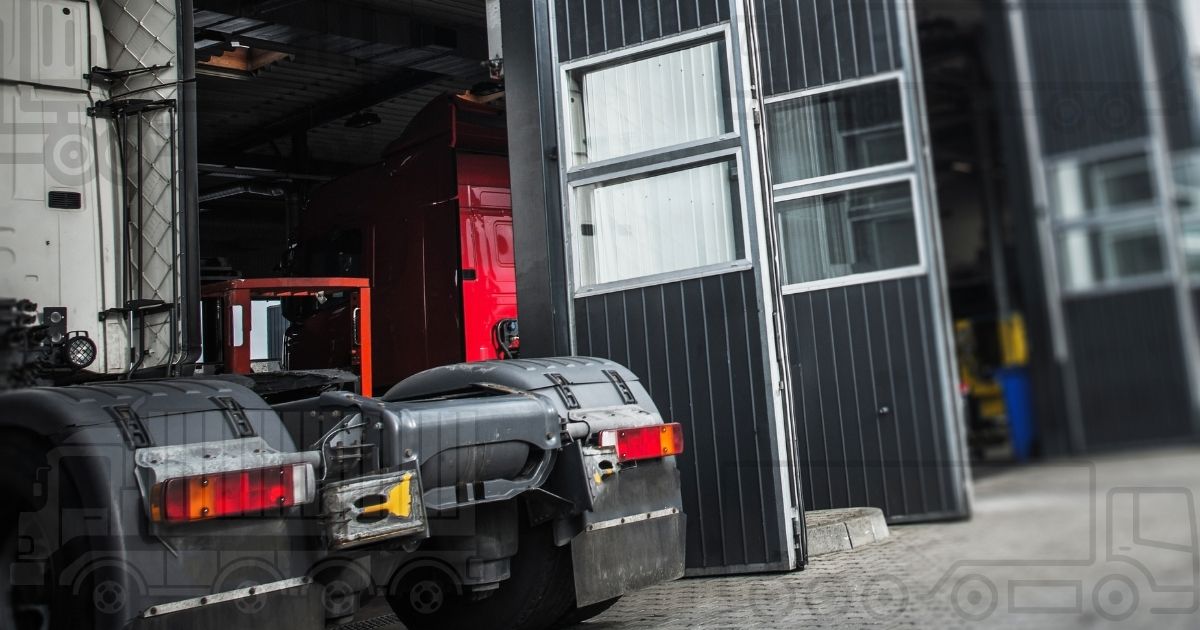

1️⃣ Leveling Valve Air Leaks

Aging leveling valves develop internal leaks, causing:

• slow height drift
• uneven axle ride height
• constant compressor cycling on tractor

Fix: Replace worn valves and re-adjust linkage according to OEM height.

2️⃣ Incorrect Linkage Adjustment

If the leveling valve linkage length changes even a few millimeters, the trailer rides too high or too low:

• excessive kingpin load
• tire wear from suspension misalignment
• front axle overload

Fix: Measure exact ride height under normal load and calibrate linkage.

3️⃣ Height Control Valve Sticking in Winter

Cold temperatures cause moisture inside valves to freeze. This leads to:

• slow response
• one side rising faster than the other
• trailer leaning under load

Fix: Drain tanks regularly, ensure moisture separators work, avoid cheap valves.

4️⃣ Airbag Aging & Cracks

Old airbags lose elasticity and fail to maintain stable ride height:

• height oscillation during bumps
• poor damping
• increased roll tendency

Fix: Replace airbags every 6–8 years depending on mileage and climate.

5️⃣ ECU & EBS Consequences of Wrong Ride Height

Incorrect ride height affects more than just comfort — it changes the geometry of the entire vehicle:

• EBS load-sensing becomes inaccurate
• axle load distribution becomes unstable
• steering semi-trailers lose proper pivot alignment

Fix: height calibration must be part of every scheduled service.

6️⃣ Misdiagnosed Air Leaks Masked by Low Temperatures

In winter, rubber contracts and temporarily seals small leaks — until the trailer hits warm regions again. This leads to:

• intermittent low-pressure warnings
• random height loss
• airbag collapse under load

Fix: leak-down test + soap test + visual inspection of all fittings.

🧮 Height Error Cost Estimator

🏁 Conclusion

Air suspension height control is not a “comfort option” — it is a core engineering function that affects load distribution, braking, safety and tyre life.

• Check leveling valves regularly
• Replace aging airbags before failure
• Maintain clean air tanks and moisture separators
• Calibrate ride height after axle, tyre or suspension changes

A perfectly calibrated air suspension is the cheapest insurance for a stable and long-lasting fleet.

---

---
