Common Hydraulic Ramp Problems on Lowbed Trailers

Technical guide to common hydraulic ramp problems on lowbed trailers — including leaks, pressure loss, cylinder wear, valve failures, ramp misalignment and a quick pressure loss diagnostic helper.

📅 Published on 2025-12-01 | ✍️ Semi Trailer News Technical Desk

Image: Lowbed trailer hydraulic ramp system with cylinders, hoses and control valves

Hydraulic loading ramps are one of the most stressed components on a lowbed trailer. Unlike the main chassis, which distributes loads across multiple axles and beams, ramp systems concentrate extremely high forces on a small structure during loading operations. A single excavator or bulldozer may apply several tons of point load on the ramp surface while climbing onto the trailer deck. These forces are transferred through hinges, hydraulic cylinders and structural beams — creating significant mechanical and hydraulic stress. Because of these conditions, ramp failures are among the most common service issues reported by heavy haul transport companies worldwide.

Why Hydraulic Ramps Are Critical on Lowbed Trailers

Hydraulic ramps allow lowbed trailers to safely load and unload excavators, bulldozers, pavers and other heavy machinery without additional lifting equipment. A typical system includes:

• double-acting hydraulic cylinders
• control valves and flow dividers
• flexible hoses and steel pipes
• oil tank, pump and filter
• manual or electric control (wired or remote)

When any part of the system fails, ramps may move slowly, stop halfway, drop unexpectedly or become completely inoperable — creating serious safety risks.

Typical Hydraulic Ramp System Layout

Most lowbed trailers use a compact hydraulic system specifically designed to operate two loading ramps simultaneously. While configurations vary by manufacturer, the core architecture typically includes the following components:

• hydraulic pump driven by PTO or electric power pack
• oil reservoir with filtration system
• double-acting hydraulic cylinders
• flow divider or synchronization valve
• pressure relief valve for overload protection
• manual or remote control valve block

The purpose of this system is not only to lift the ramps but also to ensure both ramps move at the same speed and remain structurally balanced during operation.

⚠ Typical Symptoms of Hydraulic Ramp Problems

• ramp lifts very slowly or not at all
• ramp drops back down after reaching the top (creeping)
• one ramp moves faster than the other (uneven movement)
• shocking / jerky movement when lifting
• visible oil leaks on hoses, fittings or cylinders
• hydraulic tank level dropping over time

Most of these symptoms are linked to pressure loss, internal leakage or air in the system.

Typical Hydraulic Pressure in Lowbed Ramp Systems

Lowbed trailer ramp systems usually operate at relatively high hydraulic pressure to generate enough lifting force for heavy ramps and machinery loads.

• Typical operating pressure: 180–220 bar
• Relief valve setting: 220–250 bar
• Cylinder diameter: 60–100 mm
• Typical ramp lifting capacity: 3–12 tons

If pressure drops below the designed operating range, ramp lifting performance quickly deteriorates and the system may stall during loading operations.

1. External Oil Leaks & Hose Failures

External leaks are the easiest to spot and should be treated as a critical safety issue. Common leak points include:

• hose crimp fittings and quick couplings
• damaged flexible hoses near ramp hinges
• loose connections on cylinder ports
• cracked steel pipes under the chassis

Every leak reduces available system pressure and can cause ramps to stall or drop unexpectedly. Leaking oil also creates slip hazards on loading yards.

2. Internal Leakage in Cylinders

Even if there is no visible oil leak, internal leakage in hydraulic cylinders can cause:

• ramp slowly creeping down when the valve is closed
• difficulty holding heavy machines in position on the ramps
• uneven lifting if one cylinder bypasses more than the other

Internal leakage is usually caused by worn piston seals, scratched cylinder bores or damaged rod seals. Cylinder overhaul or replacement is often required.

3. Air in the Hydraulic System

Air bubbles in the oil lead to:

• spongy, jerky ramp movement
• delayed response when operating the controls
• foaming in the tank and noisy pump operation

After hose or cylinder replacement, the system must be properly bled. Some lowbed trailers have dedicated bleed screws at the cylinder head or the highest point of the line.

Hydraulic Oil Contamination – A Hidden Cause of Ramp Failure

Contaminated hydraulic oil is one of the most common causes of valve block failure in lowbed ramp systems. Dirt particles, metal debris and water contamination can damage precision valve components and reduce hydraulic efficiency.

• metal particles from cylinder wear
• dust contamination during hose replacement
• water condensation inside oil tanks
• seal debris circulating through the system

Even microscopic contamination can prevent check valves from sealing properly, causing ramps to slowly drop under load.

4. Valve Block & Flow Divider Problems

Most modern lowbeds use a valve block with:

• directional control valves
• check valves to hold the load
• flow dividers to synchronize both ramps
• pressure relief valves

Contamination (dirt, rust, water) can cause valves to stick half-open or closed, resulting in:

• one ramp moving while the other stays still
• ramp not holding its position under load
• pressure dropping as soon as the pump stops

A strict filter and oil change interval is essential to keep the valve block working correctly.

Loading Safety and Ramp Failure Risks

Ramp failures are particularly dangerous during heavy equipment loading. If a ramp collapses or drops suddenly while a machine is climbing the trailer, serious accidents can occur.

Common safety risks include:

• excavator slipping due to sudden ramp movement
• ramp structural collapse under overload
• machine rollover during uneven ramp movement
• hydraulic hose rupture under pressure

For this reason, many heavy haul operators perform a visual inspection of ramp hinges and hydraulic cylinders before every loading operation.

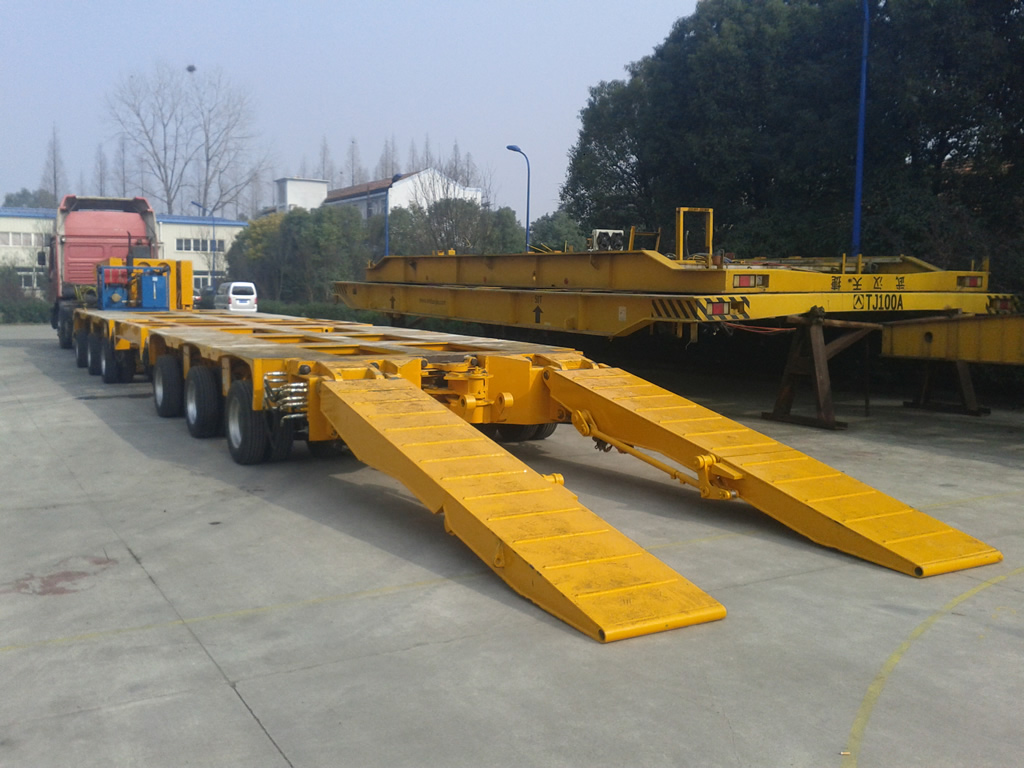

5. Ramp Misalignment & Mechanical Problems

• bent ramp structure or hinges after overloading
• worn hinge pins causing excessive play
• mechanical stops or lock hooks not releasing fully

In these cases the hydraulic system may be working correctly, but the ramp mechanically binds and overloads the cylinders, leading to early seal or rod failure.

Pressure Loss Diagnostic Helper

One of the fastest ways to evaluate ramp performance is to compare inlet pressure vs. pressure at the cylinder port. Use the helper below to estimate percentage pressure loss.

As a rule of thumb, pressure losses above 15–20% in a short line section may indicate blocked filters, damaged hoses, faulty valves or significant internal leakage.

Quick Diagnostic Checklist for Hydraulic Ramps

• Check oil level and look for foaming in the tank
• Inspect all hoses and fittings under pressure for leaks
• Measure system pressure at pump outlet and cylinder port
• Listen for pump noise changes when ramps are loaded
• Verify ramp hinges and mechanical locks are free to move
• Bleed air from the system after component replacement
• Keep a record of pressure readings for each trailer in the fleet

Ramp Systems in Heavy Haul Operations

Lowbed trailers used in mining, construction and infrastructure transport experience significantly higher ramp loads compared to standard construction trailers.

• crawler excavators exceeding 40 tons
• asphalt pavers with concentrated track loads
• drilling rigs with uneven weight distribution
• bulldozers applying high point loads

For these applications, ramp structures often require reinforced hinge plates, larger hydraulic cylinders and high-strength structural steel to prevent fatigue failures.

Conclusion

Hydraulic ramps on lowbed trailers operate in harsh conditions and are exposed to high loads, dirt and operator mistakes. By systematically checking for external leaks, internal cylinder bypass, valve block issues, air in the system and mechanical misalignment, workshops can quickly find the root cause of ramp problems and restore safe operation.

---
