How to Diagnose Trailer Suspension Problems (Step-by-Step)
Most suspension failures show early warning symptoms. Understanding these signs helps prevent bushing collapse, air loss, axle misalignment, and roll instability — the top causes of trailer downtime.

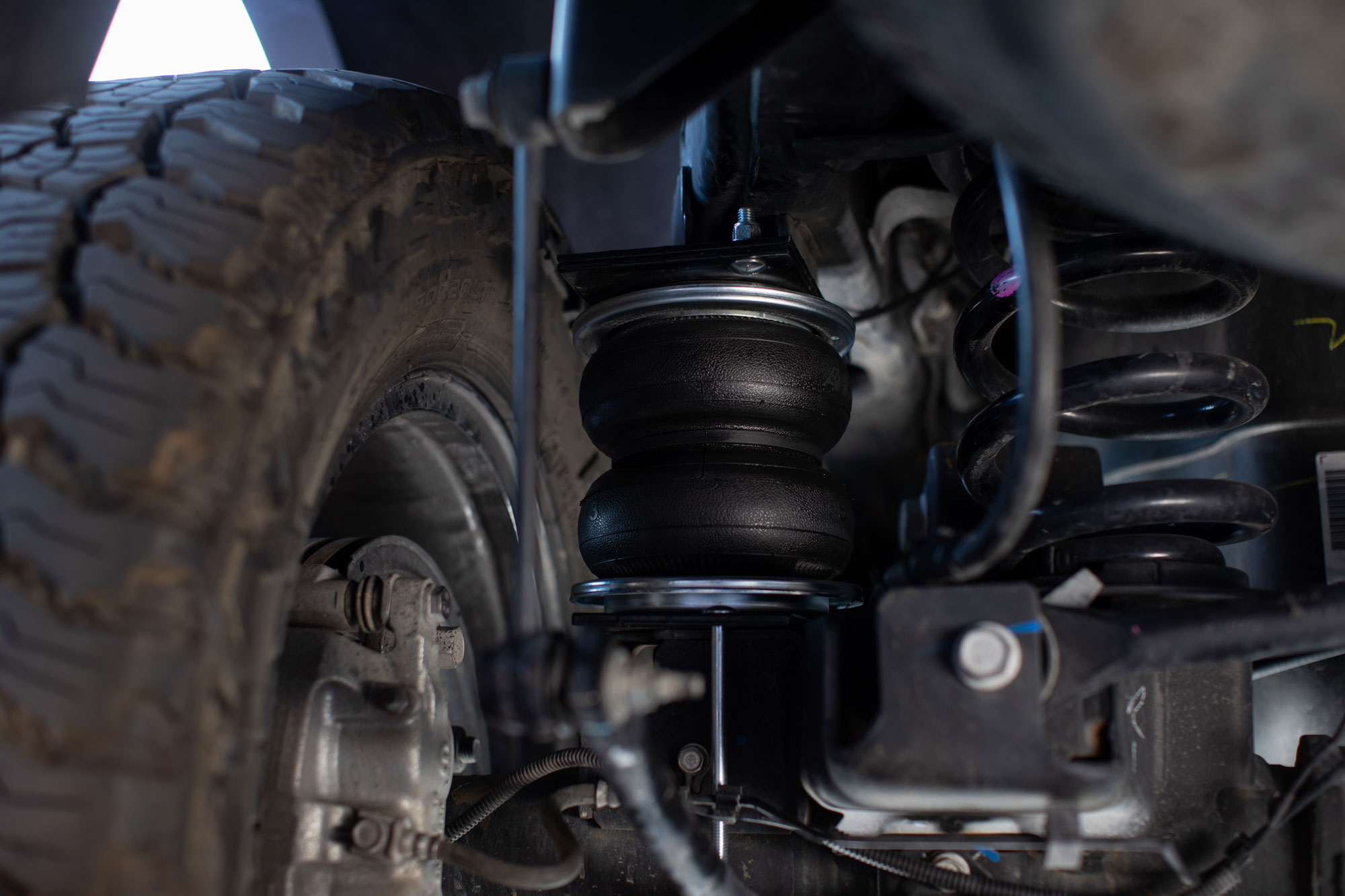

1️⃣ Trailer Leaning to One Side
Possible Causes:
- Air bellow leakage (micro cracks)
- Height control valve stuck or misadjusted
- Mechanical torsion arm deformation
- Bushing collapse on one side
Diagnosis Steps:
- Check pressure in each air spring (should be equal).
- Spray soapy water to detect air leaks on bellows and fittings.
- Check height control linkage for wear or loose joints.
- Measure chassis-to-ground height on both sides.
2️⃣ Suspension Not Lifting / Slow to Rise
Common Causes:
- Weak or aging air bellows (rubber fatigue)
- Restricted air supply line
- Frozen leveling valve (winter regions)
- Moisture inside air system → valve sticking
How to Fix:
- Check air tank pressure (≥ 8 BAR required).
- Inspect supply line from air tank to leveling valve.
- Check air dryer performance — wet air causes valve sticking.
- Replace old bellows in pairs (L+R) for balance.
3️⃣ Excessive Vibration or Harsh Ride
Symptoms:
- Trailer bounces on uneven roads
- Load shifts during braking
- Increased tyre wear (cupping)
Likely Reasons:
- Worn torque rod bushings
- Broken leaf spring (mechanical suspension)
- Over-stiff air pressure due to faulty leveling valve
- Bent hanger bracket or misaligned axles
Fix Steps:
- Physically inspect torque rod bushings for cracks or voids.
- Verify air spring pressure is not above manufacturer range.
- Measure axle alignment with a laser or string line.
- Check leaf spring packs for fractures.
4️⃣ Premature Tyre Wear (Suspension-Related)
Tyre Wear Patterns & Causes:
| Tyre Wear Pattern | Suspension Cause |
|---|---|
| Inside wear | Axle misalignment / negative camber change |
| Outside wear | Positive camber / worn bushings |
| Feathered edges | Toe misalignment |
| Cupping | Worn shocks or bushings |
What to Check:
- All torque rods for bushing play
- Axle toe & camber (measure both ends)
- Hanger bracket deformation
- Uneven ride height left–right
5️⃣ Air Leaks in Suspension System
Common Leak Points:
- Bellows cracks
- Push-in fittings leaking
- Height valve internal leak
- Air line abrasion on chassis
Quick Test:
- Park trailer, build air to 8–10 BAR.
- Measure height at both sides.
- Wait 30 minutes.
- If height drops > 20 mm → leak in air circuit.

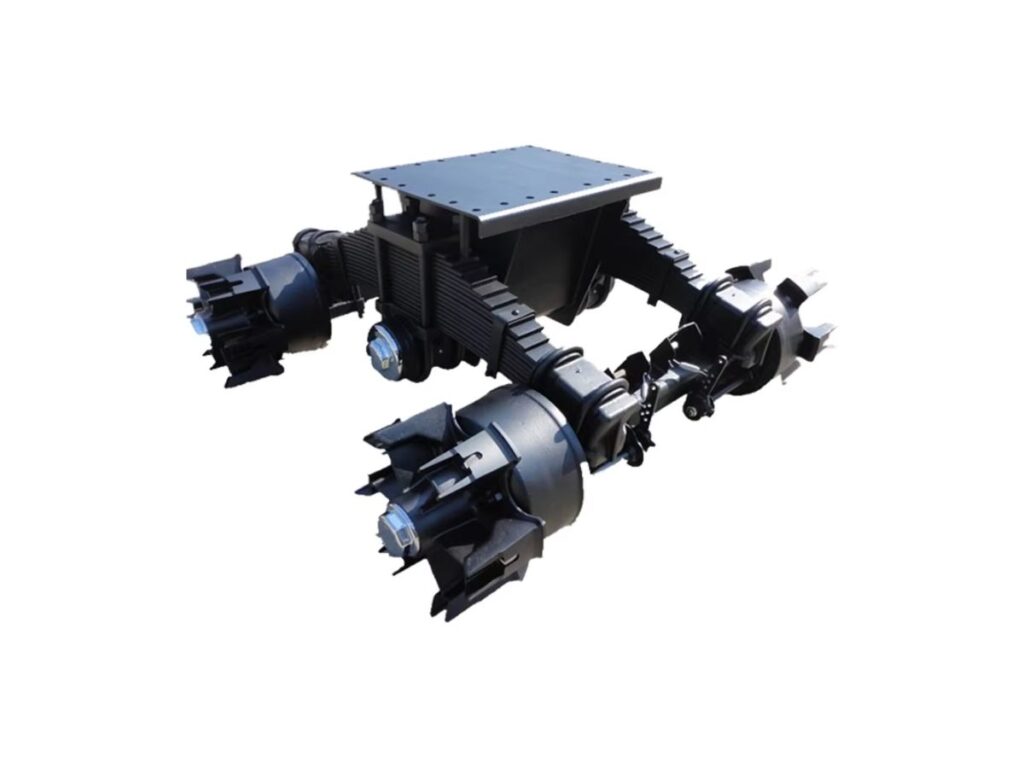

6️⃣ When to Replace Suspension Bushings?
Replace immediately if:
- Cracks or missing rubber sections
- Metal-to-metal contact between torque rod & hanger
- Axle shifts backward under load
- Tyre wear shows feather or camber wear
Engineering Note: A worn bushing changes axle position by 5–15 mm — enough to cause tyre heat buildup, brake imbalance, and steering pull.
