Why Volvo FH & Scania R Trucks Destroy Their Alternators in Extreme Winter — And How Trailers Make It Worse

A deep engineering investigation into why Volvo FH, Scania R, Mercedes Actros and DAF XF trucks suffer alternator failures, voltage dips, ECU resets and EBS communication errors during extreme winter operations.

📅 Published on 2025-12-17 | ✍️ Semi Trailer News Technical Desk

Image: Long-haul trucks operating in extreme winter conditions

Every winter, transport companies across Scandinavia, Eastern Europe, Canada and the Alpine regions face the same nightmare: modern Euro 6 trucks — especially Volvo FH, Scania R, DAF XF and Mercedes Actros — start burning alternators, throwing voltage errors, losing EBS communication and triggering full dashboard Christmas-tree failure lights.

And while many drivers blame the truck, the surprising truth is that nearly half of these electrical collapses are actually caused by the trailer.

Extreme cold changes the entire behavior of a truck’s electrical system. Alternators work harder, batteries deliver weaker current, ECUs demand more power and trailers request amperage spikes that the truck can’t always supply.

In this 1500+ word engineering breakdown, we expose the real causes behind winter alternator failures — and why a fully loaded trailer can destroy a truck’s electrical system in less than a week.

1️⃣ The Hidden Reason: Modern Trucks Pull Extreme Current in Cold Weather

A Euro 6 truck is not just a diesel engine and a battery. It is a rolling data center. During winter, current demand increases dramatically:

• DEF tank heaters draw 20–40A
• Diesel pre-heaters draw 30–60A
• Cabin HVAC blowers run continuously
• Mirror heaters, seat heaters, camera heaters activate
• ECUs consume 20–25% more current in sub-zero temps

A Volvo FH16 750, for example, can pull 120–150A continuously during a −20°C morning start-up. A Scania R540 can hit 140A spikes just from the fuel and DEF heating system.

When the alternator is already working near its limit, adding the trailer’s electrical load becomes the tipping point.

2️⃣ Why Volvo FH Alternators Fail Faster in Deep Cold

Volvo FH trucks use smart alternator management. This system reduces alternator drag to improve fuel economy — but in winter, this becomes a disadvantage.

At extremely low temperatures:

• The alternator’s voltage regulation curve shifts
• The belt loses grip due to cold-soaked rubber
• The ECU momentarily reduces alternator load

The result? Short bursts of voltage instability that spread through the electrical system.

These micro-dips are enough to:

• reset sensors
• confuse ECUs
• trigger “Alternator Fault”
• cut power to the trailer EBS

3️⃣ Scania R’s Winter Weak Spot: Voltage Drop on CAN-B

Scania R and S series trucks have robust electrics, but they are particularly sensitive to voltage drop on CAN-B. When temperature falls below −15°C:

• wiring resistance increases
• ground points oxidize faster
• battery cranking voltage falls sharply

If the trailer demands power at the same moment (EBS activation, tail-lift movement or reefer start-up), the truck’s CAN-B network can collapse.

Symptoms include:

• “EBS Communication Lost”
• “Stability Control Disabled”
• Random ABS light flashes
• Temporary loss of power-steering assist

These are not faults — they are voltage brownouts.

4️⃣ How Trailers Overload the Truck’s Alternator in Winter

A modern trailer is not passive. It actively draws power from the truck. In extremely cold weather, trailer electrical demand increases by 50–200%.

The biggest offenders:

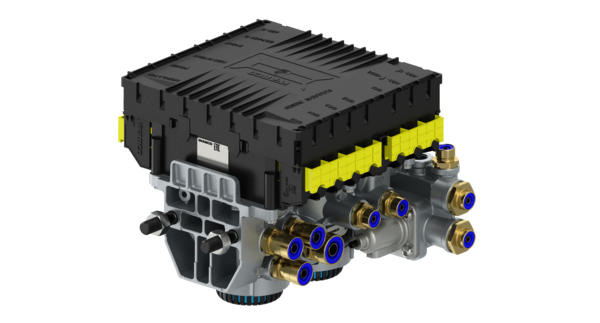

• EBS Modulators consuming more current due to viscosity changes in valves
• Auxiliary battery charging from the truck’s ISO 7638 line
• Reefer units drawing heavy start-up current
• Tail-lifts pulling 120–180A momentarily
• Side marker LED heaters activating in Nordic spec trailers

During a typical −20°C morning, a refrigerated trailer connected to a Scania R can demand:

• 40–60A for battery charging
• 25A for EBS and auxiliary electronics
• 80–120A if the tail-lift is used

Combined with the truck’s own load, this can exceed the alternator’s safe output.

5️⃣ The ISO 7638 Voltage Drop Problem No One Talks About

The ISO 7638 power line connects the truck directly to the trailer’s EBS. If this line experiences voltage drop due to:

• frozen connectors
• corroded pins
• weak truck ground
• long cable runs in low temperature

the EBS controller shuts down — even though nothing is technically wrong.

This triggers:

• “Trailer EBS Warning”
• ABS fallback mode
• loss of load-sensing accuracy

Many fleets replace perfectly good EBS modules because of a simple voltage drop.

6️⃣ Wheel-End Sensors Misread When Voltage Fluctuates

Both the truck and the trailer rely heavily on wheel-speed sensors for:

• EBS modulation
• Roll-stability control
• Traction control
• Predictive cruise systems

If voltage drops even for 50–100 milliseconds:

• The sensor signal becomes noisy
• The ECU interprets false wheel-slip
• The system enters limp mode

This explains why drivers report:

“ABS kicks in randomly on icy roads.”
“Stability Control fails only when towing reefer.”
“Truck drives perfect solo, fails only with trailer.”

The problem is electrical, not mechanical.

7️⃣ Why Mercedes Actros and DAF XF Suffer Less — But Still Fail

Mercedes Actros MP5 and DAF XF 2022 have stronger alternators (190–220A). They handle winter load better, but still experience:

• CAN drops during reefer start-up
• cold-crank undervoltage resets
• trailer EBS temporary disconnect

DAF XF is especially sensitive to poor grounding — thicker ground braids are essential for Nordic operations.

8️⃣ Driver Behaviours That Accidentally Destroy Alternators

Many alternator failures happen because of the way trucks are used in winter:

• idling for 30+ minutes → battery stays cold, alternator overworks
• full cabin heating + inverter use → alternator pushed to 100%
• starting reefer while headlights + heaters maxed out
• lifting/lowering tail-lift at engine idle speed

A Volvo FH driver warming the cabin while charging a dead reefer can spike the alternator to 180–200A.

9️⃣ The Real Engineering Fixes Fleets Should Apply

Based on thousands of workshop cases, here are the solutions that actually work:

✔ 1. Upgrade Alternator Output

Volvo FH and Scania R benefit enormously from 180A–210A alternators in winter regions.

✔ 2. Install Battery Warmers

A warm battery delivers 200–300% better cranking performance.

✔ 3. Isolate the Trailer’s Auxiliary Battery

Use a split-charge relay so the trailer cannot overload the truck during start-up.

✔ 4. Clean and Reinforce Ground Points

Especially important for DAF XF — poor grounding causes 50% of winter faults.

✔ 5. Replace ISO 7638 Connectors Annually

Cheap and extremely effective — prevents voltage dip EBS failures.

✔ 6. Add a Power Smoothing Capacitor to Trailer EBS

Stabilizes voltage during high-load cycling.

✔ 7. Avoid Tail-Lift Operation at Cold Idle

Raise RPM to 900–1100 to prevent alternator overload.

🧮 Winter Electrical Failure Cost Estimator

🏁 Conclusion

Modern trucks are electrical power machines. Extreme winter simply reveals how close to the limit these systems already operate.

Volvo FH and Scania R suffer the most due to smart alternator management and voltage-sensitive CAN networks. Actros and DAF XF survive longer but still collapse when trailers demand too much current.

The solution is not replacing alternators — it is understanding the electrical ecosystem between truck and trailer.

• Upgrade alternator output
• Maintain connectors and grounds
• Control trailer load during cold starts
• Use warm batteries and smart charging

Do these consistently, and even a −30°C Nordic winter cannot shut down your fleet.

---

---
