The Hidden Cost of Poor Electrical Grounding in Semi Trailers

A detailed engineering look at grounding issues in semi trailers — signal noise, EBS instability, lighting failures, corrosion risks, and the real financial cost of poor grounding practices.

📅 Published on 2025-12-17 | ✍️ Semi Trailer News Technical Desk

Image: Electrical grounding and EMC mitigation on a modern semi trailer

⚡ Why Trailer Grounding Matters More Than Most Fleets Realize

Electrical grounding is one of the most ignored areas in trailer engineering — yet it is directly responsible for lighting failures, EBS errors, signal interference, sensor instability, and unexpected downtime. A poor grounding system creates unstable voltage paths, increases resistance, and disrupts all electronic communication between tractor and trailer.

• Inconsistent brake signals
• Corrupted ABS/EBS sensor data

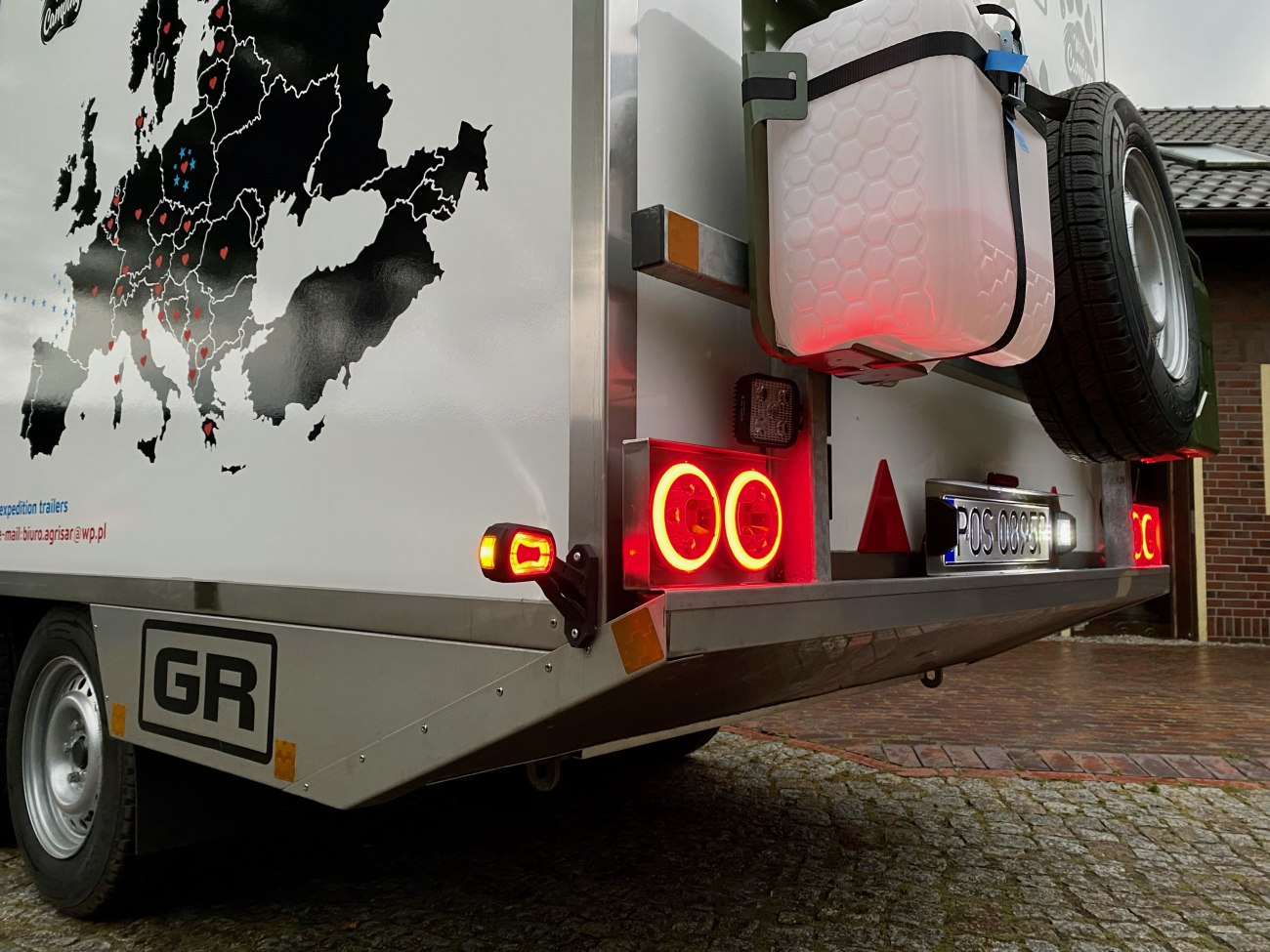

• LED flickering due to voltage drop
• Corrosion accelerating ground failures
• Unpredictable power behavior on rough terrain

🔌 The 4 Most Common Grounding Mistakes in Semi Trailers

1. Using the Chassis as the Sole Ground Path

Many manufacturers still ground their circuits directly to the chassis. While acceptable in old systems, this design causes issues with:

• increased resistance from paint layers
• rusted mounting points
• loss of continuity after repairs

2. Weak Ground Points Near Suspension or Axles

These zones experience constant vibration and moisture exposure. Ground straps placed here quickly corrode and fail, causing intermittent power loss.

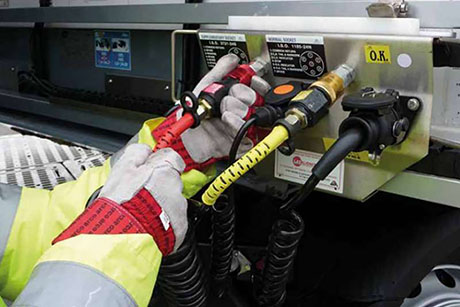

3. No Dedicated Ground Return for EBS/ABS Signals

EBS/ABS modules require a clean, noise-free reference plane. Using the chassis as ground can cause:

• CAN communication noise
• voltage ripple
• Wheel-speed sensor misreads
• False brake demand signals

4. Bad Repair Practices in Local Workshops

Grounding issues increase dramatically when technicians:

• scrape paint poorly
• reuse old corroded bolts
• mix aluminium + steel → galvanic corrosion
• forget dielectric grease

📉 How Grounding Problems Create Real Financial Losses

Poor grounding is not just a technical defect — it is a financial drain. Across Africa, GCC and Europe, fleets report up to:

• 🚨 30% more roadside breakdowns
• ⚠️ 40% higher EBS module replacement rates
• 🔌 50% of lighting failures traced to grounding
• ⏱ 2–6 hours lost per breakdown

A single grounding point failure can disable brake control logic, forcing the driver to stop immediately. For long-distance fleets, this can translate into missed delivery windows and contractual penalties.

🛡 How to Build a Proper Grounding System (Engineering Checklist)

Manufacturers should implement a grounding design that includes:

• Dedicated return lines for EBS, ABS and lighting
• Multi-point grounding busbar near the junction box
• Anti-corrosion coatings and sealed terminals
• Copper braided ground straps with weather protection
• Galvanic isolation for mixed-metal connections
• Periodic torque checks on grounding bolts

🏁 Conclusion

Grounding failures are silent, progressive and expensive. From EBS instability to lighting chaos, a poor ground path affects every electrical component on a semi trailer. Fleets that invest in proper grounding designs and maintenance drastically reduce downtime and ensure long-term reliability.

---

---
