How to Diagnose Air Loss in Truck & Trailer Pneumatic Systems

A complete step-by-step guide for diagnosing air loss in truck and semi-trailer pneumatic systems — covering air tanks, valves, hoses, brake chambers, governor tests and leak-down procedures.

📅 Published on 2026-07-22 | ✍️ Semi Trailer News Technical Desk

Image: Technician performing air leak inspection on tractor + trailer pneumatic system

How Truck Pneumatic Systems Work

Heavy trucks and semi trailers rely on compressed air instead of hydraulic fluid to operate braking systems, parking brakes and air suspension components. Compressed air is generated by the engine-driven compressor and stored in air reservoirs until needed for braking or suspension adjustments.

Typical operating pressure for modern truck pneumatic systems ranges between 8 and 12 bar. The compressor governor automatically controls cut-in and cut-out pressure levels to maintain sufficient air supply for safe braking.

• Compressor cut-in pressure: 7–8 bar
• Compressor cut-out pressure: 10–12 bar
• Emergency brake activation: below ~5 bar

If air pressure drops too quickly due to leaks, the braking system may no longer maintain sufficient pressure to operate safely.

What Causes Air Loss in Pneumatic Systems?

Air loss in heavy trucks and semi trailers originates from leaks in hoses, brake chambers, valves, air tanks, fittings, quick releases and suspension bellows. A slow leak may take 15–30 minutes to drop from 10 bar to 7 bar, while a severe leak may empty the system in minutes.

• Damaged nylon hoses
• Loose OR damaged push-in fittings
• Air tank drain valve leaks
• Worn or cracked air bellows
• Brake chamber diaphragm rupture
• Faulty relay valve / protection valve
• Defective air dryer purge valve
• Compressor governor out of calibration

Tractor vs Trailer Air Circuits

A tractor-trailer combination uses two separate pneumatic circuits connected through the red and blue gladhand couplings.

• Red line (Supply line) – delivers compressed air from the tractor to the trailer reservoirs.
• Blue line (Service line) – transmits braking signals when the driver presses the brake pedal.

Because these circuits perform different functions, isolating them during diagnostics allows technicians to quickly determine whether the air leak originates on the tractor or trailer side.

Key Components of a Truck Pneumatic System

A typical heavy truck pneumatic system contains several interconnected components that store, regulate, and distribute compressed air. Understanding the layout helps technicians isolate leak sources faster.

• Air compressor – generates compressed air
• Air dryer – removes moisture and oil contamination
• Air tanks – store compressed air (primary / secondary)
• Protection valves – isolate circuits in case of pressure loss
• Relay valves – amplify brake signal pressure
• Brake chambers – convert air pressure to mechanical braking force
• Suspension air bellows – maintain ride height
• Gladhand couplings – connect tractor and trailer air circuits

Leaks can occur anywhere in this chain. However, the most common failure points are fittings, hoses, brake chamber diaphragms, and air dryer purge valves.

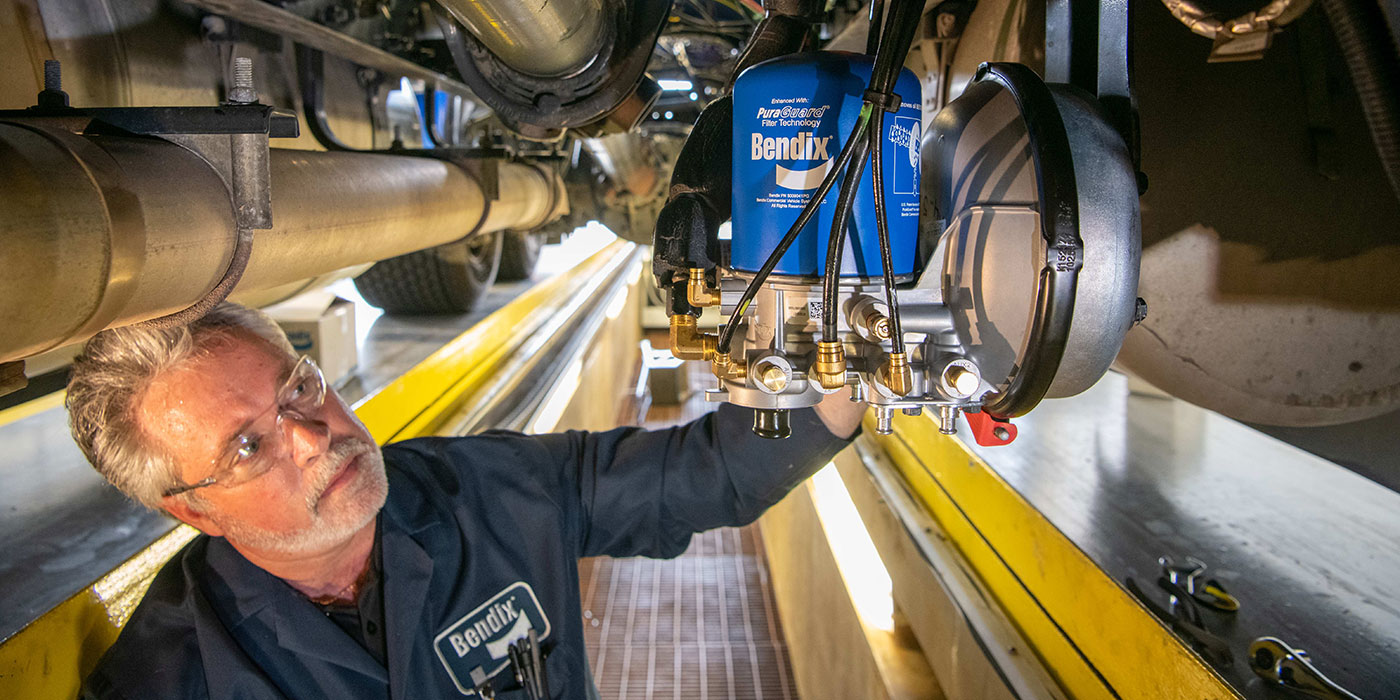

The Role of the Air Dryer in Leak Prevention

Air dryers remove moisture and oil contamination from compressed air before it enters the braking system. Without proper drying, water vapor can condense inside air tanks and valves.

• Moisture causes internal corrosion in valves
• Water contamination damages seals and diaphragms
• Frozen valves may occur in cold climates

A malfunctioning air dryer purge valve may also create a continuous air leak, often mistaken for other system faults.

Step 1 — Perform a Leak-Down Test

Standard method used by fleets and DOT/EC inspectors:

1. Charge system to 10–12 bar.
2. Switch engine OFF.
3. Apply full service brake for 1 minute.
4. Record pressure drop.

Acceptable Leak Limits:

• Tractor only: ≤ 0.35 bar per minute
• Tractor + Trailer: ≤ 0.50 bar per minute

If leak exceeds limits → proceed to isolation tests.

🔧 Step 2 — Isolate Tractor vs Trailer

Use the following procedure:

1. Disconnect red supply gladhand
2. Install a gladhand blank tester or ball valve
3. Pressurize tractor → observe drop
4. Reconnect and repeat for blue service line

This identifies whether the leak is on the tractor side or trailer side.

Most Frequent Air Leak Locations in Trucks

Field inspections show that most air leaks originate from a small number of recurring locations across truck and trailer pneumatic systems.

• push-in fittings on nylon air lines
• relay valve exhaust ports
• air dryer purge valves
• brake chamber diaphragms
• cracked suspension air bellows
• worn gladhand seals

Identifying these common leak points first significantly reduces diagnostic time during maintenance inspections.

Step 3 — Check Common Leak Points

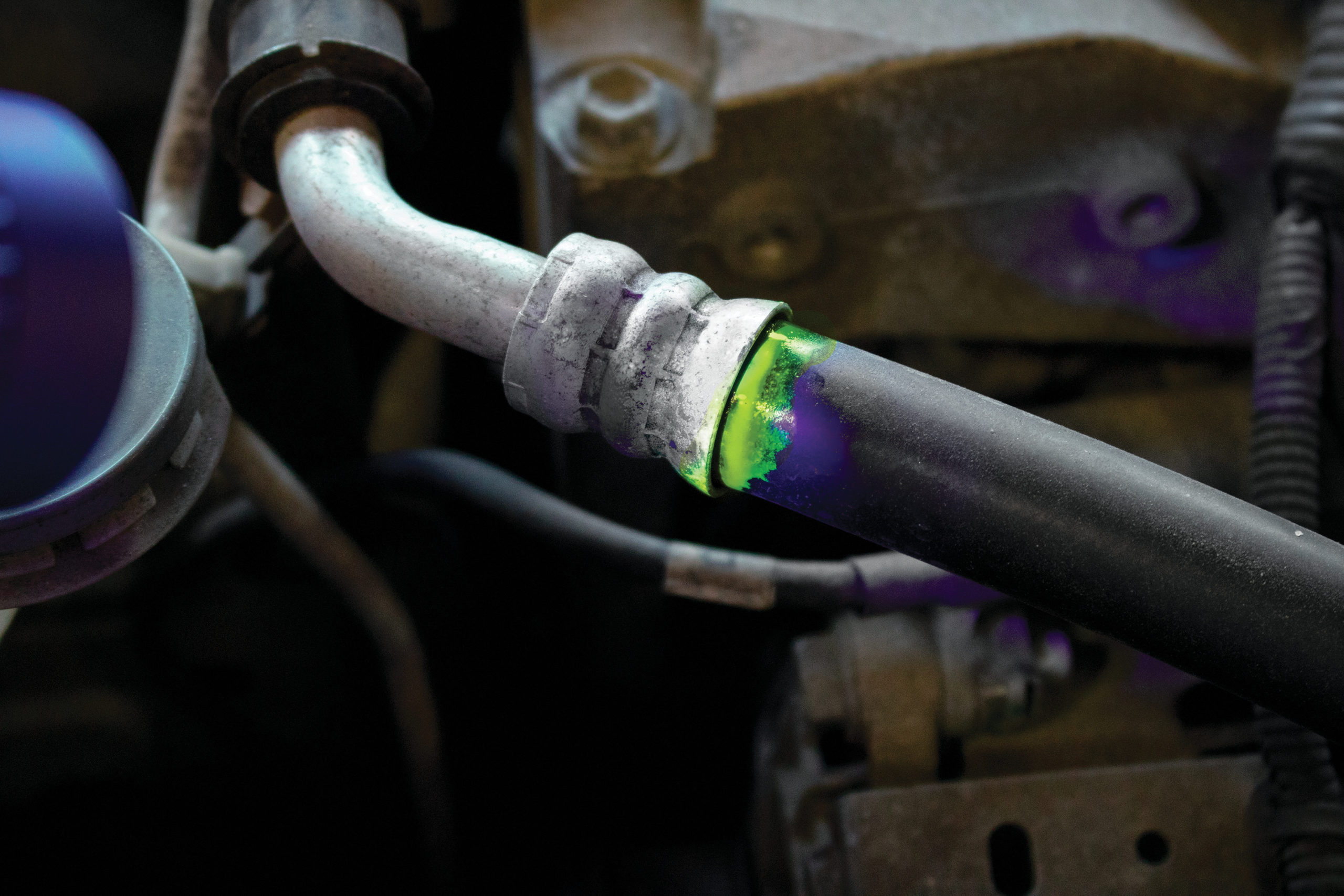

• Push-in fittings: Spray soapy water and look for bubbles
• Brake chambers: Listen for hissing around diaphragm
• Relay valves: Check exhaust ports
• Air dryer: Inspect purge valve for constant leaking
• Suspension: Look for cracked air bellows
• Air tanks: Test drain valves and rusted areas

Quick Pressure Drop Calculator

How Air Leaks Affect the Compressor

When the pneumatic system contains a leak, the compressor must run more frequently to maintain system pressure. Continuous compressor operation leads to several long-term problems:

• overheating of the compressor head
• excessive fuel consumption
• oil carry-over into the air system
• premature compressor wear

Fleet operators often identify air leaks early by monitoring compressor duty cycle during idle conditions.

Step 4 — Signs of Dangerous Air Loss

• Air dryer purges repeatedly every 10–20 seconds
• Brake warning light activates during idle
• Compressor runs continuously
• Trailer park brake releases slowly
• Suspension struggles to maintain ride height

Step 5 — Fix the Root Cause

Typical repair actions:

• Replace damaged air hoses
• Renew push-in fittings (6mm / 8mm / 12mm)
• Replace leaking relay valve
• Install new brake chamber diaphragm
• Rebuild air dryer purge valve
• Adjust or replace faulty compressor governor

Fleet Preventive Inspection Checklist

Fleet maintenance teams typically check the following items during routine air system inspections:

• Perform daily air pressure build-up test
• Check air dryer purge cycle
• Inspect all nylon air hoses for abrasion
• Verify gladhand seals and couplings
• Drain air tanks weekly to remove moisture
• Inspect suspension bellows for cracking
• Check compressor governor cut-in / cut-out pressure
• Perform full leak-down test every maintenance interval

Preventive inspection significantly reduces air system failures, brake performance issues, and compressor overwork.

Why Air System Integrity Is Critical for Safety

Air brake systems are designed with multiple safety redundancies, but they still rely on stable air pressure to operate correctly.

• low pressure increases stopping distance
• severe leaks may trigger automatic spring brakes
• air suspension may collapse if pressure drops
• brake modulation becomes unstable

For this reason, transport regulations in most regions require periodic air leak testing and brake system inspections for commercial vehicles.

Conclusion

Diagnosing air loss requires a structured procedure: leak-down test → isolation → targeted inspection. Correct troubleshooting prevents roadside breakdowns, brake failure risks, and excessive compressor wear.

---
