How to Adjust Trailer Drum Brakes: Manual & Automatic Slack Adjuster Guide

A complete technical guide to adjusting trailer drum brakes — including manual slack adjusters, automatic slack adjusters (ASA), free-stroke measurement, S-cam inspection and a brake stroke calculator.

📅 Published on 2025-12-05 | ✍️ Semi Trailer News Technical Desk

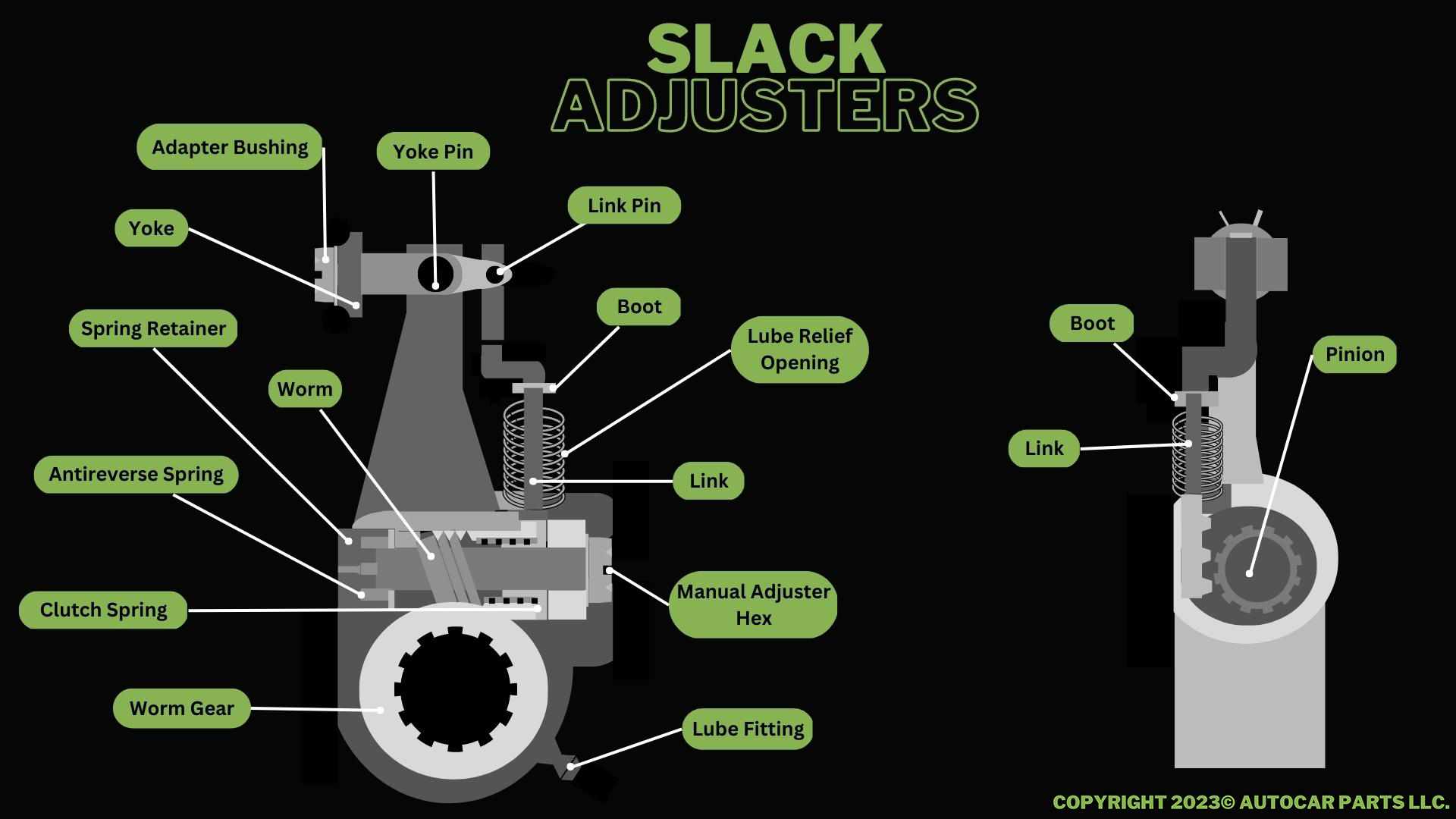

Image: Manual and automatic slack adjusters on trailer drum brake systems

Introduction: Why Brake Adjustment Matters

Trailer drum brakes depend on correct slack adjuster setup to maintain safe stopping distances. Incorrect adjustment leads to:

• longer brake stroke
• overheating drums
• uneven braking across axles
• poor parking brake performance

This guide shows how to adjust both manual slack adjusters and automatic slack adjusters (ASA).

1. Identify Your Slack Adjuster Type

Two types are used on trailers:

• Manual Slack Adjuster — requires regular adjustment
• Automatic Slack Adjuster (ASA) — self-adjusting, but only if linkage is healthy

Automatic adjusters MUST NOT be manually adjusted except for initial setup or troubleshooting.

Feature	Manual	Automatic (ASA)
Adjustment	Manual	Self-adjusting
Maintenance	Frequent	Low
Failure risk	Human error	Mechanical wear

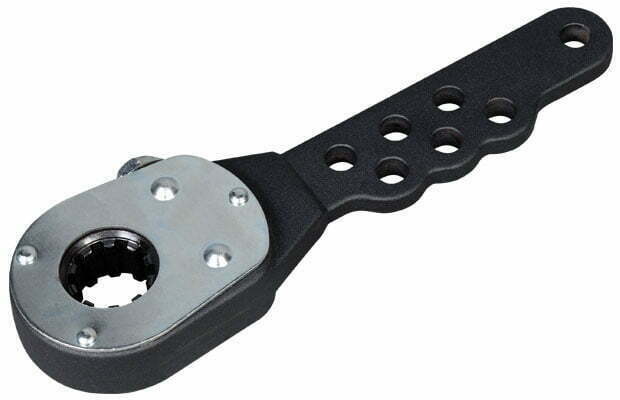

2. How to Adjust Manual Slack Adjusters

Step-by-step:

1. Chock wheels and release parking brake
2. Turn the adjusting bolt clockwise until brake shoes contact the drum
3. Continue until the wheel cannot be turned
4. Back off the adjuster 1/4 to 1/2 turn
5. Verify free wheel rotation

The brake should now have correct free stroke.

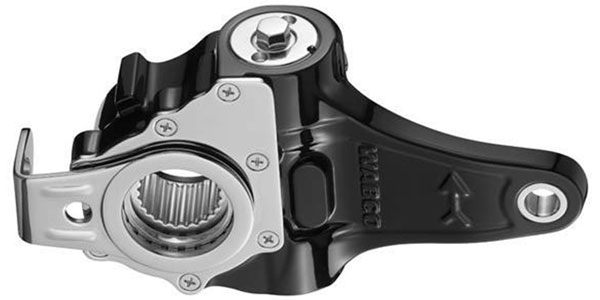

3. Automatic Slack Adjusters (ASA) — Troubleshooting

If your automatic slack adjuster does not self-adjust, check:

• worn or seized clevis pins
• damaged return spring
• incorrect camshaft rotation angle
• excessive S-cam bushing wear

ASAs require proper control arm alignment. If not aligned, the internal clutch cannot adjust stroke.

ASA Troubleshooting Flow

• Stroke too long → Check linkage → If worn → Replace
• Stroke not adjusting → Check control arm angle
• Noise during braking → Inspect bushings
• Uneven braking → Compare axle stroke values

Brake Force Distribution Between Axles

Improper slack adjuster setup does not only affect a single wheel — it directly changes how braking force is distributed across the entire trailer.

• Short stroke (over-adjusted): early brake engagement → overheating risk
• Long stroke (under-adjusted): delayed braking → longer stopping distance
• Uneven stroke: trailer pulls to one side during braking

In multi-axle trailers, even a 5–10 mm difference between axles can result in uneven load transfer and instability.

4. Measure Brake Free Stroke

Free stroke is the distance the pushrod travels before the shoes contact the drum.

• Normal: 13–20 mm
• Out of spec: Above 25–32 mm

Measure pushrod movement with service brakes fully applied at 6–8 bar.

Brake Stroke Calculator

Enter your pushrod free stroke to determine if adjustment is required.

Cost of Poor Brake Adjustment

Incorrect brake adjustment leads to hidden operational costs that are often misinterpreted as normal wear.

• Brake lining wear: +30–50% faster replacement cycles
• Fuel consumption: increased rolling resistance
• Tyre damage: uneven braking causes flat spots
• Downtime: roadside failures and inspections

For fleet operators, improper adjustment can increase total brake system costs by 20–40% annually.

5. Inspect S-Cam, Bushings & Return Springs

Brake adjustment alone cannot compensate for:

• worn S-cam bushings
• weak return springs
• oval camshaft rotation
• contaminated brake shoes

Worn bushings cause inconsistent adjustment and noisy braking.

Advanced Inspection Checklist

• Measure S-cam rotation angle (should be ~90° at full brake)
• Check camshaft end play
• Inspect brake drum internal diameter
• Verify lining contact pattern
• Check air pressure consistency (6–8 bar)

These checks are essential for diagnosing issues that adjustment alone cannot fix.

Conclusion

Correct brake adjustment ensures balanced braking, stable stopping distances and reduced lining wear. Follow manufacturer guidelines, check free stroke regularly and replace worn linkage components to keep the system reliable.

---
