How to Diagnose Electrical Faults in Trailer Lighting Circuits

A step-by-step engineering guide for diagnosing electrical faults in trailer lighting circuits — covering grounding, voltage drop, connector corrosion, short circuits and a quick voltage loss calculator.

📅 Published on 2026-07-18 | ✍️ Semi Trailer News Technical Desk

Image: Semi trailer lighting system showing connectors, wiring and junction boxes

Introduction: Why Trailer Lighting Fails So Often

Trailer lighting faults are among the most frequent roadside defects reported during inspections. Unlike mechanical failures, lighting issues are usually electrical — and often progressive rather than sudden.

The most common root causes include:

• poor or unstable grounding
• corrosion inside connectors
• damaged wiring near moving suspension parts
• voltage irregularities from the tractor unit
• short circuits inside junction boxes
• water ingress into LED lamp housings

Because trailer lighting circuits are long and exposed to vibration, moisture and road debris, even small defects can escalate quickly. This guide explains a structured, professional diagnostic approach.

1. Start With the Ground (Most Common Root Cause)

Every lighting circuit depends on a solid return path through the chassis. A weak ground connection creates unpredictable behavior.

Typical grounding symptoms:

• dim or flickering lights
• indicators flashing rapidly
• multiple lamps glowing faintly together
• brake lights activating turn indicators
• rear fog lamp feeding back into tail light circuit

Inspect and clean grounding points between:

• kingpin plate and chassis frame
• junction box and main rail
• lamp mounting bracket and body panel

Remove rust, tighten fasteners and apply dielectric grease to prevent oxidation.

---

2. Inspect Connectors & Junction Boxes

The rear junction box is the distribution hub for the trailer’s electrical system. Moisture ingress is a frequent failure trigger.

Check for:

• green or white corrosion on terminals
• water accumulation
• loose screw or clamp terminals
• melted insulation from overload
• poor cable sealing at entry points

If corrosion is present, replace terminals — cleaning alone may not restore full conductivity.

---

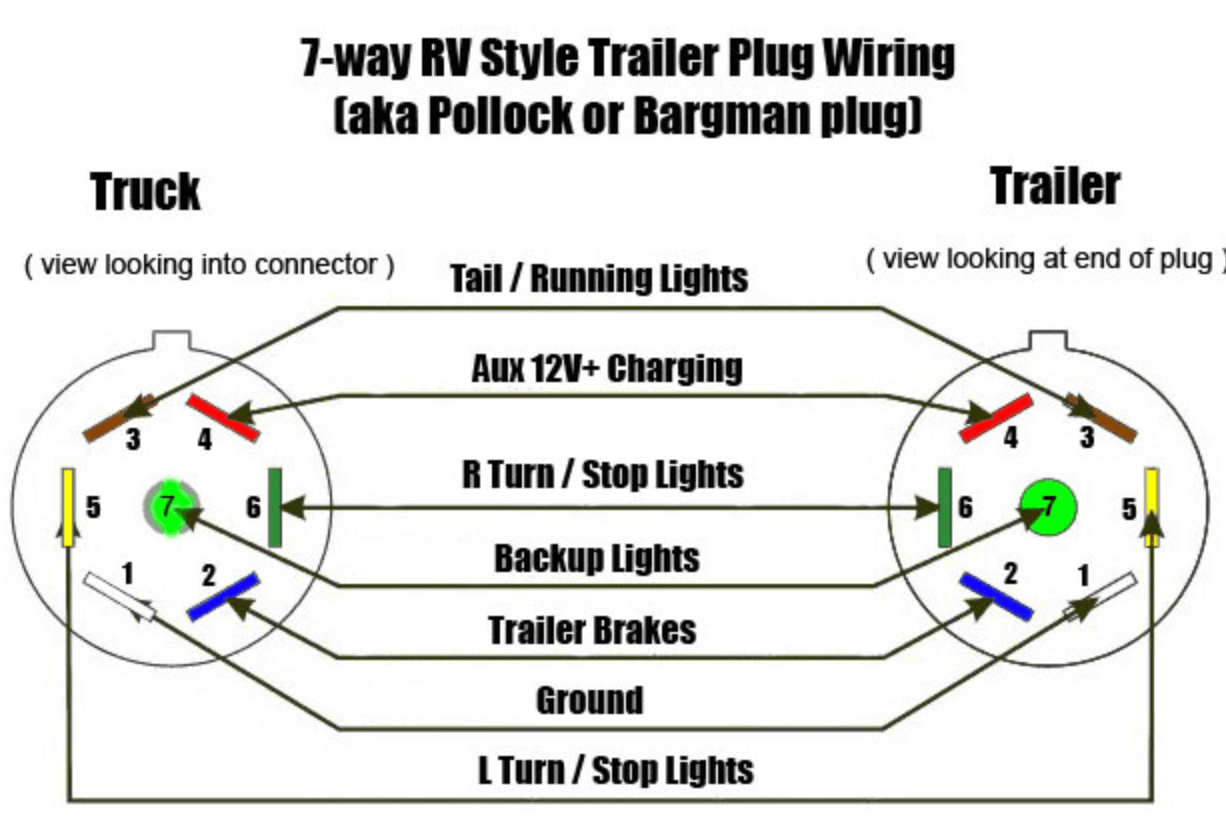

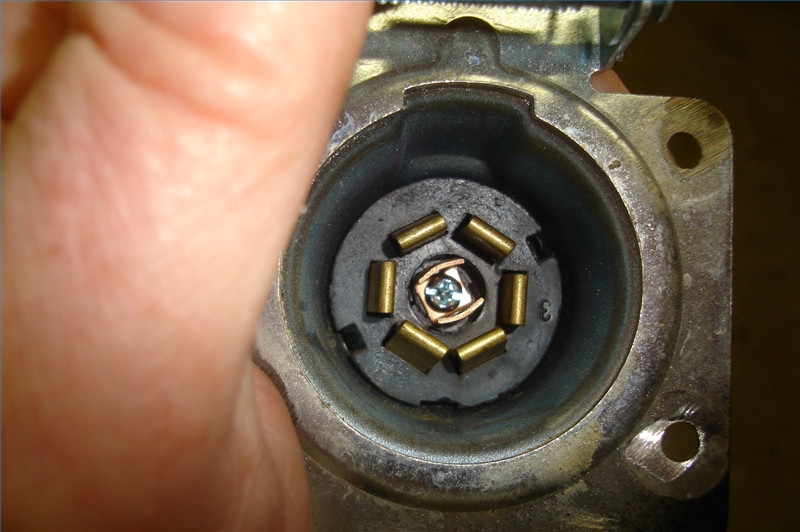

3. Check the Main 7-Pin (ISO 1185/3731) or ISO 7638 Plug

The tractor-trailer electrical interface is a high-stress connection point. Vibration and coupling strain often loosen pins.

Symptoms of plug-related faults:

• intermittent lighting
• reverse lights stuck on
• brake lights flashing when indicators activate
• EBS fault warnings (via ISO 7638)

Pull gently on each pin. Any movement indicates internal failure. Replace damaged plugs immediately — temporary fixes are unreliable.

4. Inspect Wiring Harness Along the Chassis

Long wiring runs are vulnerable to mechanical damage. Focus especially near:

• suspension arms
• air bellows
• landing legs
• rear ramps (lowbeds)
• axle lift mechanisms

Look for:

• insulation worn through by rubbing
• brittle outer sheath from UV exposure
• crushed cables under brackets

Even minor copper exposure increases resistance and voltage drop. Always repair using waterproof heat-shrink connectors — not simple tape wrapping.

---

5. Lamp Unit Problems (LED vs Bulb Systems)

LED Lamp Failures

• moisture ingress
• corroded internal PCB
• failed driver electronics
• voltage spikes from alternator

LED units are sealed — once moisture enters, replacement is usually required.

Bulb Lamp Failures

• loose socket contacts
• filament breakage due to vibration
• overvoltage (24–29V spikes)

Check socket tension and ensure proper bulb seating.

---

Understanding Voltage Drop in Trailer Circuits

Because trailer wiring can extend 12–15 meters, voltage loss is common. Excessive drop causes weak illumination and LED malfunction.

Voltage Drop Calculator (Lighting Circuit)

Healthy circuits should remain below 10% voltage drop. Above 15–20% typically causes dim lights, rapid indicator flashing or LED malfunction.

---

Advanced Diagnostic Techniques

• Use a multimeter under load — not open circuit measurement
• Check resistance between ground and battery negative (<0.3 Ω preferred)
• Use a current clamp to detect abnormal draw
• Test continuity of long harness segments section by section
• Inspect EBS power supply integrity if lighting faults coincide with brake errors

---

Preventive Maintenance Recommendations

• Seal all junction boxes with IP-rated gaskets
• Replace cracked cable conduits proactively
• Apply anti-corrosion spray to connectors annually
• Secure harness every 300–400 mm with vibration-resistant clips
• Drain air tanks regularly to reduce moisture migration near electrical lines

---

Quick Diagnostic Checklist

• Verify ground continuity first
• Inspect 7-pin / ISO connectors for movement
• Open rear junction box and check for corrosion
• Measure loaded voltage at lamp vs tractor output
• Check harness routing along chassis
• Replace any moisture-contaminated LED units

---

Conclusion

Trailer lighting failures rarely result from a single catastrophic fault. They typically originate from corrosion, grounding instability or progressive wiring damage.

A systematic diagnostic process — starting from grounding, then connectors, harness and voltage measurement — ensures fast troubleshooting and long-term reliability.

In electrical systems, consistency is safety. Reliable lighting means safer roads and fewer inspection penalties.

---
